Description
Complete System Product Features
- Vehicle Undercarriage Scanning Method: Color Linear Array CCD Scanning
- Undercarriage Image Display Time: <1 second
- Undercarriage Image Resolution: ≥12,000 × 7,500 pixels
- Undercarriage Image File Storage Size: <2 MB
- Undercarriage Image Partial Zoom Magnification: ≥2× (Distortion-free Zoom)
- Undercarriage Storage/Load Time: <1 second
- Undercarriage Image Display Mode: Horizontal display mode aligned with security inspection habits
- Undercarriage Image Storage Format: JPEG format
- Undercarriage Scanning Imaging Device: Monolithic sealed spherical structure design
- Imaging Device Field of View (FOV): ≥175 degrees
- Undercarriage Illumination Source: Monolithic sealed LED surface light source, lifespan ≥60,000 hours
- System Supported OS: Windows 2000, XP, Vista, etc.
- System Interface Language: Customizable multilingual versions (Chinese, English, Russian, German, French, Arabic, etc.)
- Extended Functions:
Vehicle scene, License plate recognition, Access control gate, Wheel blocker, Traffic lights,
Networking, Biometric identification, Undercarriage comparison technology
Operational Features
- Requires password login for system operators
- Requires operator confirmation after vehicle inspection before proceeding
- System database tracks real-time operation logs of on-duty personnel
- Advanced undercarriage image processing capabilities
- Custom resolution options: 300,000 to 50,000,000 pixels
- Customizable for vehicle speeds: 1–180 km/h

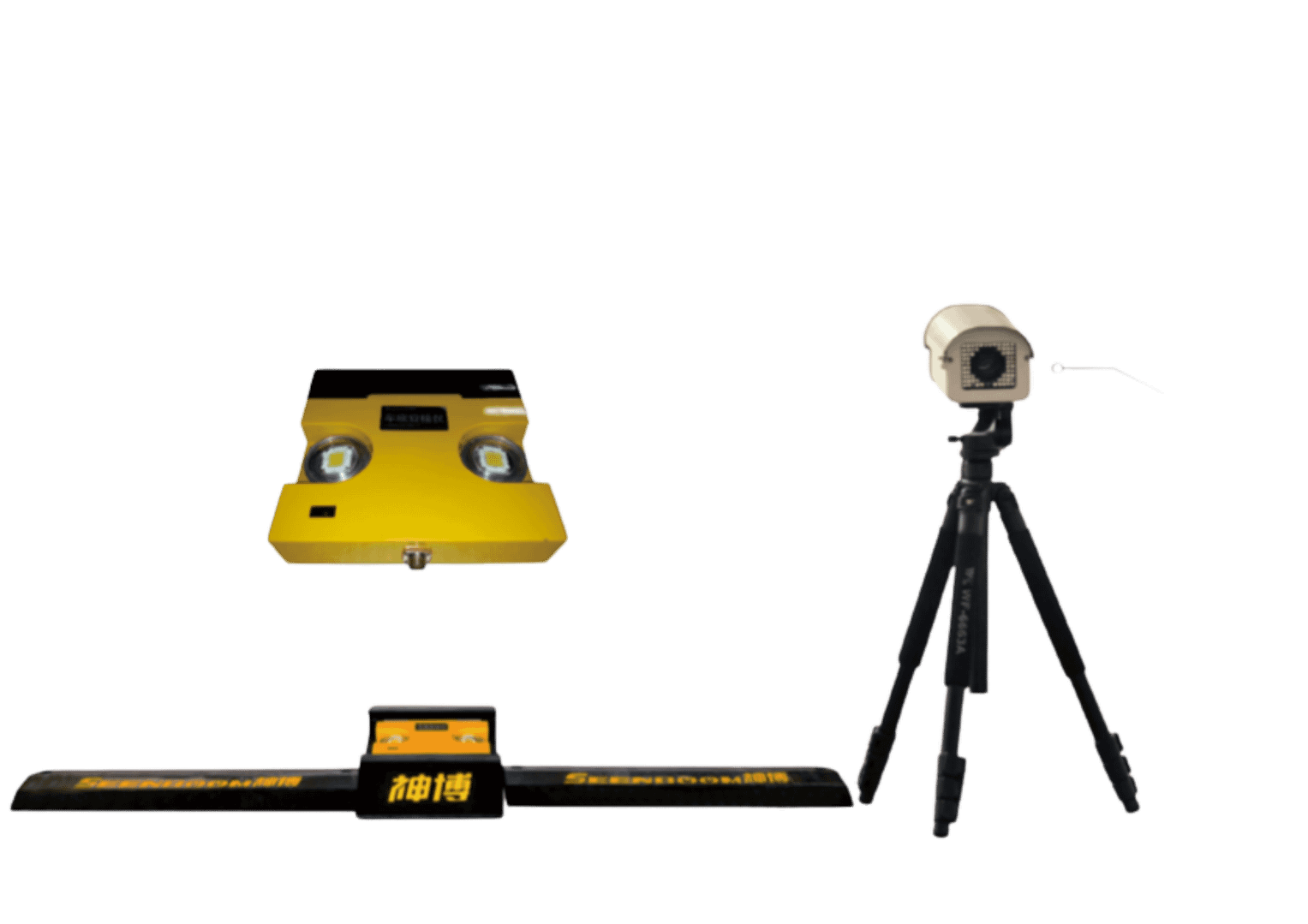

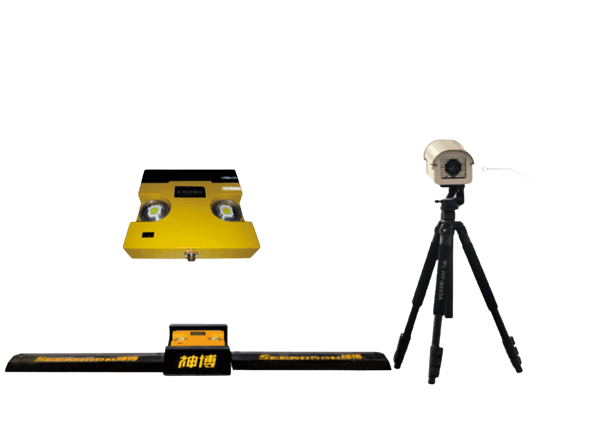

Imaging Device Specifications
- Undercarriage Imaging Resolution: Multiple models available
- Field of View (FOV): 175 degrees
- Operating Voltage: DC 12V–24V
- Operating Current: 15A
- Operating Temperature: -40°C to 70°C (Custom ultra-high/low temp options)
- Performance: Corrosion-resistant, Waterproof, Dustproof, Fog-resistant
- Crush Resistance: 30 tons (Custom design >60 tons available)
- Structural Design: Monolithic sealed spherical structure
Compatibility
- Accommodates vehicles of all undercarriage heights/lengths (standard sedans to extended limousines)
